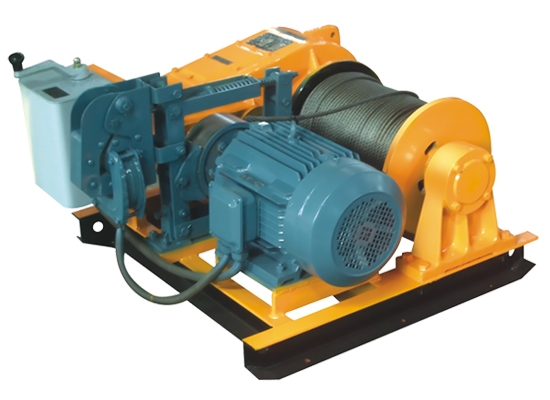

This series electric winch can be mainly used in lifting,disassemble,moving and intalling in building site, digging and workshops.
,with strong pull.Wire rope arranged in order,safe and reliable.
,with strong pull.Wire rope arranged in order,safe and reliable.
|
Model
|
JK1
|
JK3
|
JK5
|
JK8
|
JK10
|
|
|
Rated capacity (kg)
|
1000
|
3000
|
5000
|
8000
|
10000
|
|
|
Rated speed (m/min)
|
34
|
30
|
29
|
20
|
19
|
|
|
Cable Diameter (фmm)
|
11
|
17
|
22
|
26
|
30
|
|
|
Wire Rope Capacity(mm)
|
110
|
200
|
300
|
300
|
250
|
|
|
Reduction box
|
Type
|
JZQ350
|
JZQ500
|
JZQ650
|
JZQ650
|
JZQ750
|
|
Transmission ratio
|
31.5
|
40.17
|
23.34
|
|||
|
Drum (mm)
|
Diameter(ф)
|
190
|
310
|
400
|
500
|
550
|
|
Length
|
363
|
580
|
840
|
910
|
1020
|
|
|
Motor
|
Type
|
Y132M-4
|
YZR225M-8
|
YZR250M1-8
|
YZR250M1-6
|
YZR250M2-6
|
|
Power(kW)
|
7.5
|
22
|
30
|
37
|
45
|
|
|
Rotating speed(r/min)
|
1440
|
715
|
720
|
960
|
960
|
|
|
Arrester
|
TJ2-200
|
TJ2-300
|
TJ2-300
|
YWZ-300
|
YWZ-400
|
|
|
Size(cm)
|
102 ×90 ×60
|
156 ×137 × 90
|
220 ×180 ×94
|
240 ×180 ×110
|
250 ×190 ×120
|
|
|
N.W.(kg)
|
460
|
1000
|
2700
|
4000
|
5000
|
|
