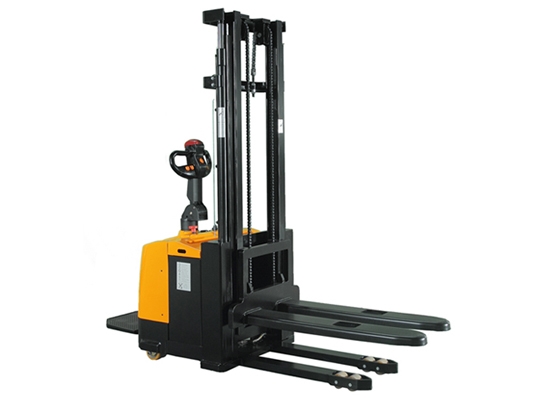

Standing full electric stacker, with movable pedal, it can reduce the operator’s work intensity.
Handle accord with human body engineering design, compact and steady. All operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting dc motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking appearance. C type forming steel door frame is the biggest security.
Main technical data
Handle accord with human body engineering design, compact and steady. All operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting dc motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking appearance. C type forming steel door frame is the biggest security.
Main technical data
|
Articles/model
|
unit
|
HR-CDD15-15
|
HR-CDD15-20 |
HR-CDD15-25
|
|
Drive mode
|
QD
|
Electric
|
||
|
Driving mode
|
kg
|
Stand/Step
|
||
|
Q Rated load capacity
|
kg
|
1000
|
2000
|
2500
|
|
C Load center distance
|
PU
|
550
|
||
|
Wheel material
|
mm
|
Polyurethane
|
||
|
Front wheel
|
mm
|
Φ80X70
|
||
|
Rear wheel
|
mm
|
Φ100X50
|
||
|
Driving wheel
|
mm
|
Φ250X75
|
||
|
h Lifting height
|
mm
|
1600/2000/2500/3000
|
||
|
h1 Doorframe retract height
|
mm
|
2068/1568/1818/2068
|
||
|
h2 Doorframe max. Working height
|
mm
|
2068/2568/3068/3568
|
||
|
L Fork length
|
mm
|
1150
|
||
|
B1 Fork outside width
|
mm
|
545
|
||
|
B Overall width
|
mm
|
845
|
||
|
L1 Overall length (include pedal)
|
mm
|
2480
|
||
|
Wa Turning radius
|
mm
|
1588
|
||
|
Lifting speed. No-load/full-load
|
mm/s
|
4.5/3.5
|
||
|
Driving speed. No-load/full-load
|
km/h
|
120/100
|
||
|
Lifting speed. No-load/full-load
|
mm/s
|
130/150
|
||
|
Climbing gradient. Full-load/no-load
|
|
7/5
|
||
|
Brake mode
|
Z
|
Electromagnetic brake
|
||
|
Battery voltage/rated capacity
|
v/ah
|
24/210
|
||
|
Driving motor
|
V/Kw
|
1.2
|
||
|
Lifting motor
|
V/Ah
|
2.2
|
||
|
Net weight
|
kg
|
1038/1108
|
1073/1160
|
1108/1260
|
