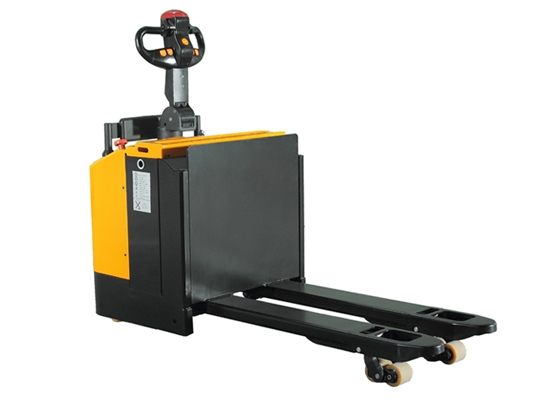

Standing full electric tow truck, with movable pedal and safeguard.
Handle accord with human body engineering design, compact and steady. all operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting DC motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking appearance. specially folded pedal and safeguard, it reduces the working intensity and improve working efficiency.
Main technical data
Handle accord with human body engineering design, compact and steady. all operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting DC motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking appearance. specially folded pedal and safeguard, it reduces the working intensity and improve working efficiency.
Main technical data
|
Articles/model
|
unit
|
HR-QDC15
|
HR-QDC20 |
HR-QDC30
|
|
Operation style
|
XZ
|
Driving/steering
|
||
|
Q Rated load capacity
|
kg
|
1500
|
2000
|
3000
|
|
C Load center distance
|
PU
|
550
|
||
|
h Fork lowered height
|
mm
|
85
|
||
| h1 Fork lifting height |
mm
|
200
|
||
| h2 Fork lifting size |
mm
|
115
|
||
|
h×B×L Fork main size
|
mm
|
55/160/1150
|
||
|
B1 Fork width
|
mm
|
550
|
||
|
B Overall width
|
mm
|
790
|
||
|
L1 Overall length(include the pedal)
|
mm
|
2310
|
||
|
h3 Overall height(exclude/include handle)
|
mm
|
860/1450
|
||
|
Wa Turning radius(pedal extend/retract)material wheel
|
mm
|
1600
|
||
|
Material wheel
|
pu
|
Polyruethane
|
||
|
Carrying wheel
|
mm
|
φ85×80
|
||
|
Steering wheel
|
mm
|
φ120×55
|
||
|
Driving wheel
|
mm
|
φ250×75
|
||
|
Driving speed no-load/full-load km/h
|
mm
|
6.2/5.2
|
||
|
Lifting speed no-load/full-load
|
mm/s
|
58/48
|
||
|
Lowering speed no-load/full-load
|
mm/s
|
48/58
|
||
|
Climbing gradient no-load/full-load
|
。
|
7/5
|
||
|
Brake mode
|
DZ
|
Electromagnetic brake
|
||
|
Driving motor
|
Kw
|
2.2
|
||
|
Lifting motor
|
Kw
|
1.2
|
||
|
Voltage/capacity
|
V/Ah
|
24/210
|
||
|
Net weight
|
Kg
|
754/770
|
784/800
|
814/830
|
