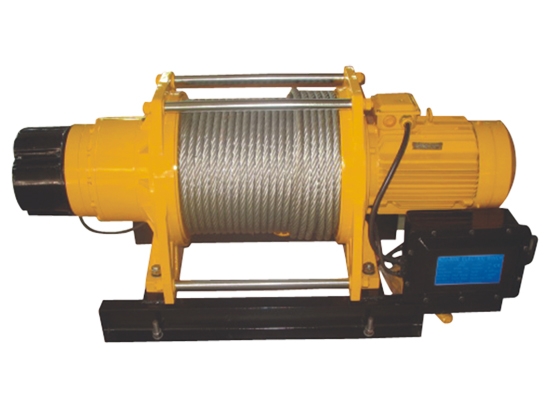

Drum transmission structure:it adopts planet gears transmission way.Coupling leads the drum turn directly.And it's very to replace rejected wire rope or change the rotation direction of wire rope.
Wire Rope Fixing:add one PT screw on the drum,it's more safer than normal wire rope fixing.it can ensure no escape of wire rope from the drum.
Brake mechanism:it adopts electromagnetism brake,Select wearable brake slice.it's very simple,no need to adjust the clearance,Brake will automatically apply in the event of power cut.It can control the drop distance of heavy load,safe and reliable.
Gear Box:made of ductile cast iron FCD-45# steel.Durable and nonbreakable.
Speical motor:insulated B,with the features of big start torque,small inertia,lower temperature rise,it can work frequently for a long time.
Driving Gear:made of high-quality steel.Pass heat treatment and high precision process.It has features of wearable,low noise,high driving efficiency and good performance.
Machine Fixture:standard channel steel welded.It's convenient used for building site, storage and port,etc.
Wire Rope Fixing:add one PT screw on the drum,it's more safer than normal wire rope fixing.it can ensure no escape of wire rope from the drum.
Brake mechanism:it adopts electromagnetism brake,Select wearable brake slice.it's very simple,no need to adjust the clearance,Brake will automatically apply in the event of power cut.It can control the drop distance of heavy load,safe and reliable.
Gear Box:made of ductile cast iron FCD-45# steel.Durable and nonbreakable.
Speical motor:insulated B,with the features of big start torque,small inertia,lower temperature rise,it can work frequently for a long time.
Driving Gear:made of high-quality steel.Pass heat treatment and high precision process.It has features of wearable,low noise,high driving efficiency and good performance.
Machine Fixture:standard channel steel welded.It's convenient used for building site, storage and port,etc.
|
Model
|
KDJ-2200E1
|
KDJ-3200E1
|
KDJ-3500E1
|
|
Load rated(kg)
|
2200
|
3200
|
3500
|
|
Speed(m/min)
|
10
|
11
|
|
|
Motor(V)
|
6
|
7.5
|
9
|
|
Pole
|
4
|
||
|
Voltage(V)
|
Three phase 220/380/415/440/480
|
||
|
Frequency(Hz)
|
50/60
|
||
|
Lifting Height(m)
|
97
|
140
|
|
|
Cable Diameter (mm×m)
|
ф16
|
ф18
|
ф18
|
|
Wire Rope Capacity(m)
|
100
|
||
|
Work Level
|
M3
|
||
|
N.W.(kg)
|
450
|
500
|
550
|
|
|
|
||

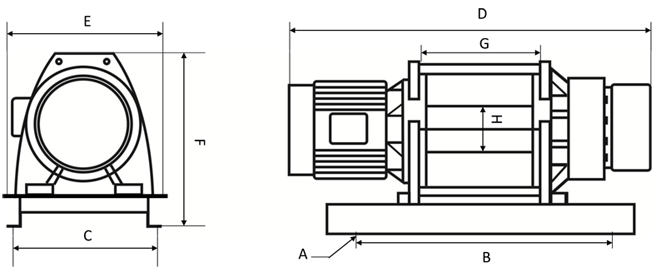

Dimensions mm
|
Model
|
KDJ-2200E1
|
KDJ-3500E1
|
KDJ-5000E1
|
|
A
|
4-ф22
|
||
|
B
|
600
|
847
|
|
|
C
|
499
|
||
|
D
|
1160
|
1431
|
|
|
E
|
565
|
||
|
F
|
658
|
860
|
|
|
G
|
312
|
416
|
|
|
H
|
ф178
|
||
