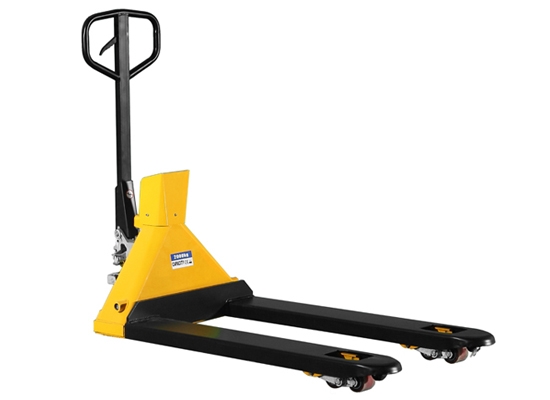

The truck increase a high precision digital display scale.
It’s one short-distance transportation facility, realize transport and weighing synchronously, improve the working efficiency.
It adopts international measurement standard of high precision weighing sensor. accuracy 0.1％ of the weight. it has peeling and sum function. the scale can be shockproof, dust proof and waterproof.
Main technical data
It’s one short-distance transportation facility, realize transport and weighing synchronously, improve the working efficiency.
It adopts international measurement standard of high precision weighing sensor. accuracy 0.1％ of the weight. it has peeling and sum function. the scale can be shockproof, dust proof and waterproof.
Main technical data
|
Articles/model
|
unit
|
HR-DZC20
|
HR-DZC30
|
|
Q Rated load capacity
|
kg
|
2000
|
3000
|
|
Carrying wheel
|
mm
|
φ75×60
|
φ80×70
|
|
Steering wheel
|
mm
|
φ180×50
|
|
|
h Fork lowered height
|
mm
|
85
|
88
|
|
h1 Fork lifting height
|
mm
|
200
|
203
|
|
h×b Fork size
|
mm
|
55×160
|
|
|
L Fork length
|
mm
|
1150×1220
|
|
|
B Fork width
|
mm
|
540×685
|
|
|
L1 Overall length |
mm
|
1550×1620
|
|
|
Battery
|
V/Ah
|
7.4/40
|
|
|
Battery life
|
h
|
40
|
|
|
Battery type
|
DL
|
Lithium
|
|
|
Display mode
|
FS
|
LCD
|
|
|
Weight
|
KG
|
110/113
|
117/120
|
