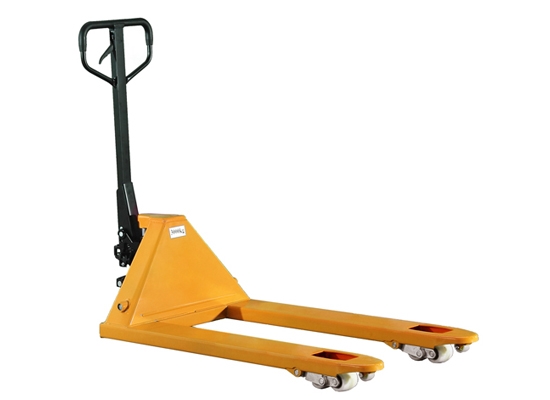

This series truck adopts high quality carbon forming steel, reliable strength,strong and durable.
The core part of main part oil pump is imported, oil pump assy pass pressure Mpa test, no oil leakage, no distortion.
The main active part assembles oilless bearing, enhance the wear-resisting degree, durable, prolong the service life.
Main technical data
The core part of main part oil pump is imported, oil pump assy pass pressure Mpa test, no oil leakage, no distortion.
The main active part assembles oilless bearing, enhance the wear-resisting degree, durable, prolong the service life.
Main technical data
|
Articles/model
|
unit
|
HR-SDCZ-5000
|
|
Q Rated load
|
kg
|
5000
|
|
Carrying wheel
|
mm
|
φ80/70
|
|
Steering wheel
|
mm
|
φ200/50
|
|
h Fork lowest height
|
mm
|
90
|
|
h1 Max.fork height
|
mm
|
210
|
|
h2×b Fork size
|
mm
|
65/160
|
|
L Fork length
|
mm
|
1150/1220
|
|
Overall height (exclude the handle)
|
mm
|
786
|
|
B Overall width
|
mm
|
550/685
|
|
L1 Overall length
|
mm
|
1530/1600
|
