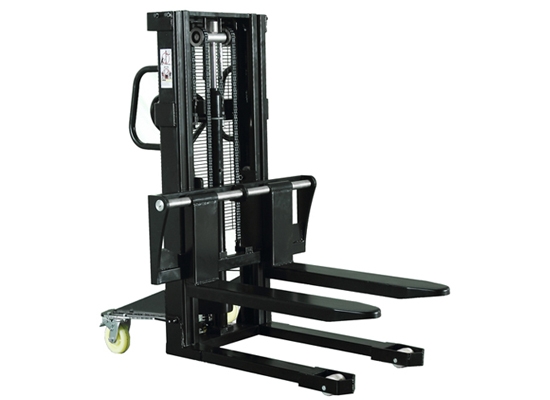

Single frame manual stacker is a kind of lifting handling and short-distance transportation tool.
It has the following features: steady lifting, flexible moving, convenient operation. universal wheel has brake device, safe and reliable.
It has reasonable design, compact structure and goodlooking appearance, it’s necessary tools for workshop,warehouse, wharf and station.
Main technical data
It has the following features: steady lifting, flexible moving, convenient operation. universal wheel has brake device, safe and reliable.
It has reasonable design, compact structure and goodlooking appearance, it’s necessary tools for workshop,warehouse, wharf and station.
Main technical data
|
Articles/model
|
unit
|
HR-CDSS10
|
HR-CDSS15
|
HR-CDSS20
|
||||||
|
Q Rated load
|
kg
|
1000
|
1500
|
2000 | ||||||
|
C Load center distance
|
mm
|
460
|
||||||||
|
Front wheel size
|
mm
|
φ80×70
|
||||||||
|
Steering wheel size
|
mm
|
φ180×50
|
||||||||
|
h Fork lowest height
|
mm
|
1600/2000/2500
|
||||||||
|
h1 Max.fork height
|
mm
|
2068/2568/3068
|
||||||||
|
L Fork length
|
mm
|
910(1150)
|
||||||||
|
T Fork adjustable width
|
|
320/680
|
||||||||
|
B Overall width
|
mm
|
1045
|
||||||||
|
L1 Overall length
|
mm
|
1585
|
||||||||
|
Wa Turning radius
|
mm
|
1480
|
||||||||
|
V Distance between front and rear wheels
|
mm
|
1200
|
||||||||
|
Net weight
|
kg
|
253/267
|
286/300
|
306/302
|
264/278
|
306/320
|
336/350
|
271/285
|
316/330
|
346/360
|
