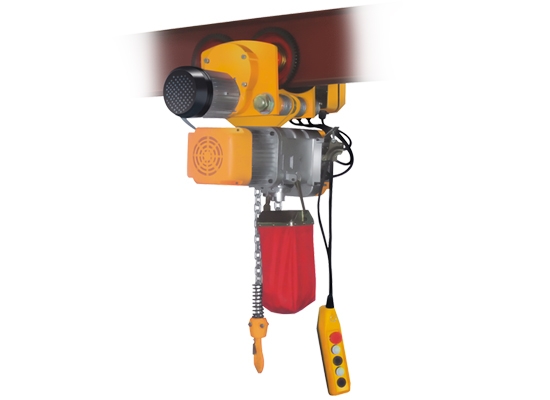

This organic adopts die-casting aluminium principle, legerity and agility, up and down position limit protection device,phase proteetion device and electromagnetic brake device.
|
Model
|
|
HHDD-HA0.5
|
HHDD-HA1
|
HHDD-KA1
|
HHDD-KA2
|
|
Rated Capacity
|
kg
|
500
|
1000
|
2000
|
|
|
Lifting Height
|
m
|
3
|
|||
|
Lifting Speed
|
m/min
|
5
|
2.5
|
5
|
2.5
|
|
Load Chain
|
φmm x mm
|
ф 8 × 24
|
|||
|
Rated Volt
|
V
|
AC 100/110/120/220/230/240 50/60HZ
|
AC 220/380/420/440 50/60HZ
|
||
|
Hoist Power
|
kw
|
0.65
|
1.1
|
||
|
Trolley Power
|
kw
|
0.45
|
0.6
|
||
|
Moving Speed
|
m/min
|
20
|
|||
|
Handle Control Voltage
|
V.AC
|
24
|
|||
|
Min Radius of Crooked Track Which Can Pass
|
m
|
2
|
|||
|
Model of Steel Beam
|
a
|
20a-45a
|
|||
|
Width of Track
|
mm
|
100 - 150
|
|||
|
Work Rate
|
|
S3-30% 20min
|
|||
|
Packing Size
|
mm
|
750 ×700× 540
|
|||
|
G.W/N.W
|
kg
|
136/118
|
142/124
|
136/118
|
142/124
|
