Adopt urgent stop switch and reinforced breaking switch with position limit.Protection class up to IP54. With thermal prevention device
APPLICATIONS:

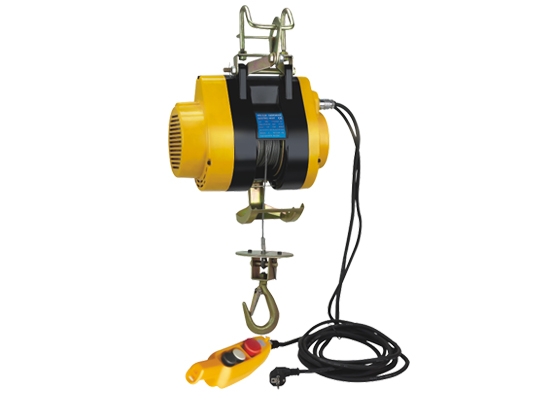

Mini Winch with built-in safety devices feature easy control of lifting fora wide rang of applicability for ware houses, storage areas, factories, house areas, constuction sites,job sites and plumbings.
Lightweight & compact design allow mounting convenient.
When rope touches the limit arm, stop automatically.
Induction-motor stops when the rope is reverse wound.
Dynamic brake designs for both static and dynamic loading.
It operates on household power source.
Plug-in cords allow portability with easy.
360° universal joint saddle hook with safety latch.
APPLICATIONS:
Mini Winch with built-in safety devices feature easy control of lifting fora wide rang of applicability for ware houses, storage areas, factories, house areas, constuction sites,job sites and plumbings.
Lightweight & compact design allow mounting convenient.
When rope touches the limit arm, stop automatically.
Induction-motor stops when the rope is reverse wound.
Dynamic brake designs for both static and dynamic loading.
It operates on household power source.
Plug-in cords allow portability with easy.
360° universal joint saddle hook with safety latch.
|
Model
|
HXS-100F
|
HXS-150F
|
HXS-200F
|
HXS-250F
|
|
Rated Capacity(kg)
|
100
|
150
|
200
|
250
|
|
Rated Volt(V)
|
AC 100/110/120 220/230/240 50/60Hz
|
|||
|
Input Power(W)
|
580
|
780
|
1050
|
1200
|
|
Cable Diameter(MM)
|
φ 3.8
|
φ 4.2
|
||
|
Lifting Speed(m/min)
|
15
|
12
|
||
|
Lifting Height(m)
|
20
|
|||
|
Packing Size(mm)
|
425×365×370
|
|||
|
G.W/N.W(kg)
|
28/27
|
30/29
|
||
